Port Code

This function allows users to manage the Port Code in M-SHIP.

🔒

Create, Update, View and Delete permissions are required to access this module.

List Port Code

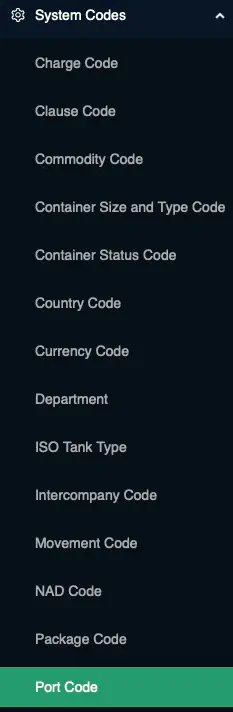

To list the Port Code, navigate to [System Codes] → Port Code from the left navigational bar.

Business Logic: By default, the system will retrieve all active Port Code.

Click on the + icon at the top right of the Content Page to add a new Port Code

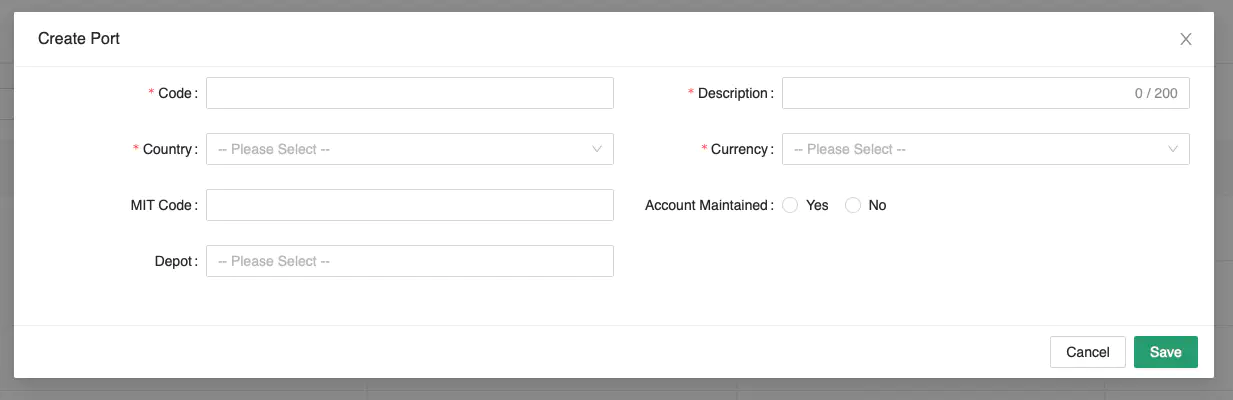

A pop-up containing all the data fields for Port Code input will be displayed.

Key in the information carefully. Ensure that all mandatory fields are entered.

Click [Save] to create the new Port Code.

Business Logic: Code must not already exist in the system. This will be checked against active records only.

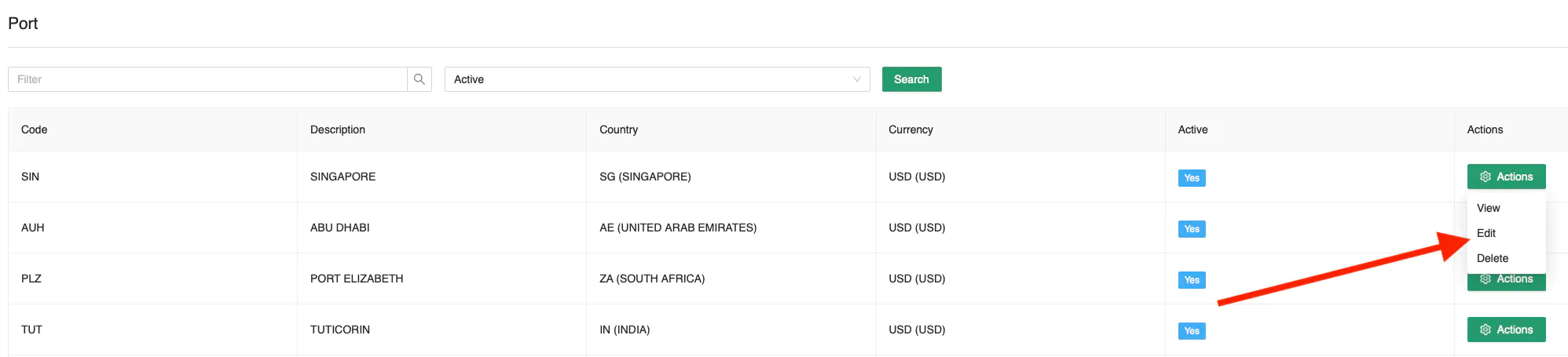

Click [Actions] → Edit to edit the selected record.

Once you have amended the entry, click [Update] to save the record.

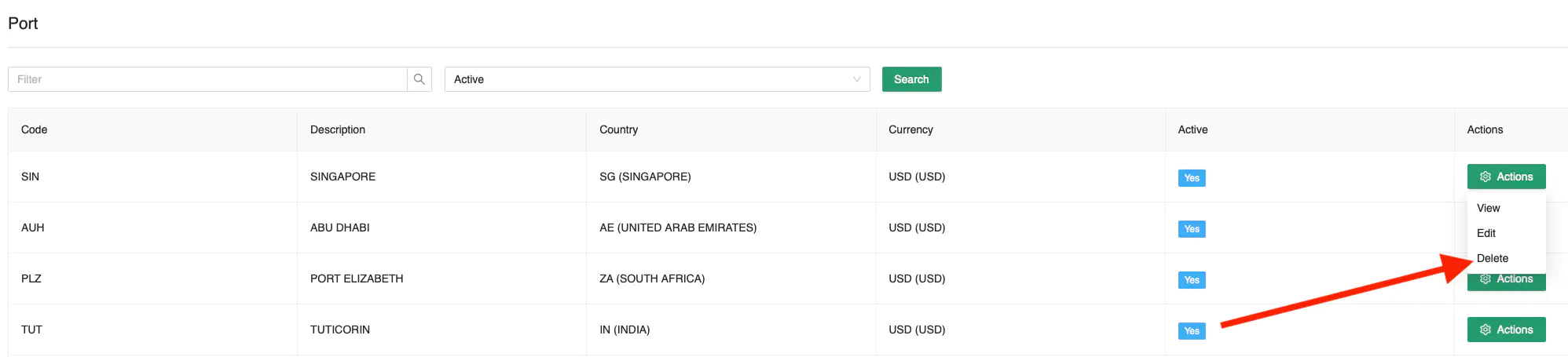

Click [Actions] → Delete to delete the selected record.

A confirmation prompt will appear. Click [Ok] to proceed with the deletion.

Business Logic: The Port Code must not be in use in any active transactions in the system.
